Cambium PTP 700



PTP 700

National defense, border security, industrial communications and critical infrastructure operators have experienced massive growth in bandwidth demands for reliable and secure broadband connectivity and backhaul.

Whether deploying in first-responder tactical situations, over water to oil platforms, in urban canyons to video cameras and hot-spots or along remote stretches of national borders for defense and situational awareness, the requirements for high-speed connectivity intersect with constraints on available spectrum, line of sight and non-line of sight topologies, IT/Enterprise integration, cyber-security threat prevention and harsh environmental conditions.

The dynamic nature and complexity of these missions means that spectrum managers, network Operators and implementation managers need flexibility and adaptability while staying within the constraints of program budgets.
The long-term total cost of ownership and sustainability of any solution comes under increasing scrutiny.

With the PTP 700, Cambium Networks breaks new ground in mission flexiblity and overall project sustainability.

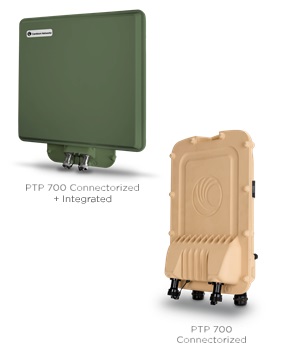

PTP 700-5

ONE RADIO - MULTIPLE MISSIONS

With the PTP 700, Cambium Networks breaks new ground in mission flexibility and overall project sustainability

•    Single radio covers 4.4 GHz to 5.875 GHz compatible with NTIA Redbook / NATO Band IV and FCC/ETSI requirements
•    Single radio can be deployed with integrated panel antenna or larger gain dishes using N-type connectors
•    High-Capacity Multi Point (HCMP) or Point-to-Point (PTP) architectures in same hardware
•    Dynamic Spectrum Op t im ization' " (DSO)
•    FIPS 140-2 NIST Validated
•    Ruggedized to MIL-STD-810G
•    Supports 1Pv6, SyncE, 1588v2



SPECIFICATIONS

RADIO TECHNOLOGY
Model PTP 700
Rf Bands Wide-band operation 4.4 to 5.875 GHz in a single SKU, support bands including:
•    NATO Band IV / NTIA Compliant (4.4 GHz to 4.99 GHz)
•    4.9 GHz Public Safety Band
•    5.1/5.2/5.4/5.8 GHz FCC/ETSI
Configuration 1+0, 1+1 HSB; 2+0 (require external switch)
Channel Sizes 5, 10, 15, 20, 30, 40, and 45 MHz channels
Spectral Efficiency 10 bps/Hz maximum
Channel Selection By Dynamic Spectrum OptimizationTM (DSO) or manual intervention
Automatic selection on start-up and continual self-optimization to avoid interference
Maximum Transmit Power Up to 29 dBm
System Gain Up to 169 dB with Integrated antenna
Modulation / Error Correction Fast Preemptive Adaptive Modulation featuring 13 modulation / FEC coding levels ranging from BPSK to 256 QAM dual payload MIMO
Duplex Scheme Time Division Duplex (TDD)
Adaptive or fixed transmit/receive duty cycles
Split frequency operation allows separate transmit and receive frequencies where allowed by regulation. Optional TDD synchronization using PTP-SYNC Module
Antenna Integrated Flat panel: 23 dBi
Connectorized: operate with a selection of separately-purchased single and dual polarity antennas through 2 x N-type female connectors
Range Up to 155 miles (250 km)
Security 128/256-bit AES Encryption (optional)
HTTPS and SNMPv3 , User authentication and RADIUS support Identity-based user accounts
Configurable password rules
Event logging and management; optional logging via syslog Disaster recovery and vulnerability management
FIPS-197 compliant FIPS 140-2 Level 2
ETHERNET BRIDGING
Protocol IEEE 802.3
Latency 1-3 ms one direction
QoS Extensive QoS supporting up to 8 Queues (PTP mode) and 4 Queues (HCMP mode)
Packet Classification Layer 2 and Layer 3 IEEE 802.1p, MPLS, Ethernet priority
Packet Performance Line rate ( >850K packets per second)
Timing Transport Synchronous Ethernet; IEEE 1588v2
Frame Support PTP Mode: Jumbo frame up to 9600 bytes, HCMP Mode: 2000 bytes per frame
Flexible I/O 2 x Gigabit Ethernet copper ports:
• Gigabit Port 1: Data + PoE power input
• Gigabit Port 2: 802.3at PoE output port
• 1 x SFP port: single-mode fiber, multi-mode fiber or copper Gigabit Ethernet options available
T1/E1 TDM Support 8 x T1/E1 TDM (Network Indoor Unit (NIDU)), G.823-compliant timing DC power input (compatible with AC+DC Power Injector output)
MANAGEMENT
Network Management In-band and out-of-band management (OOBM)
System Management IPv6/IPv4 dual-stack management support
Web access via browser using HTTP or HTTPS/TLS3 SNMP v1, v2c and v3, MIB-II and proprietary PTP MIB
Online spectrum analyzer (no impact on payload traffic or network operation
Installation  Built-in audio and graphical assistance for link optimization
HIGH CAPACITY MULTIPOINT
Remote Modules Master Up to 8 Nodes
Channel Bandwidth 20 MHz and 40 MHz
Data Capacity Per Remote Module In 1:1 Symmetry Number of Remote Module @ 40 MHz  2    3    4    5    6    7    8
Mbps                             162  106   80   66   56   46   42
Spectral Efficiency In Hcmp 8 bps/Hz Max
Line Rate Packet Per Second 850K pps
Latency In Hcmp Mode 2 to 4 ms one way(typically)
Antenna Options 4.4-5.875 GHz 90 degree sector (15 dBi gain)
4.4-5.875 GHz 36 degree sector (16 dBi gain)
PHYSICAL
Dimensions Connectorized + Integrated Outdoor Unit (ODU):
Width    371mm (14.6”), Height 429mm (16.9”), Depth 96mm (3.8”)
Outdoor Unit (ODU):
Width 204mm (8.0”), Height 318mm (12.5”), Depth 90mm (3.5”)
Weight  Connectorized + Integrated ODU: 5.3 kg (11.7 lbs) including bracket
Outdoor Unit (ODU): 3.1 kg (6.8 lbs) including bracket
Operating Temperature -40° to +140° F (-40° to +60° C)
Dust- Water Intrusion Protection IP66 and IP67
Shock, Vibration, Temperature MIL-STD-810G
Wind Speed Survival 200 mph (322 kph)
Power Supply AC + DC power injector: -40° to 140° F (-40° to +60° C); 70 W; 90-240 VAC, 50/60 Hz
Power Consumption Dimensions: Width 250mm (9.75”), Height 40mm (1.5”), Depth 80mm (3.0”)
35 W maximum (up to 70 W with 802.3at device on auxiliary port)
ENVIRONMENTAL & REGULATORY
Protection and Saftey UL60950-1 and -22; IEC60950-1 and -22; EN60950-1 and -22;
CSA-C22.2 No. 60950-1; CSA-C22 No. 60950-22-7; CB approval for Global
Radio 4.9 GHz: FCC Part 90Y, RSS-111
5.x GHz: FCC Part 15, sub-parts 15C and 15E; RSS 247 Issue 1;
EN 302 502; EN 301 893; EN 302 625; Eire ComReg 02/71R1, UK Approval to IR2007
EMC  Europe – EN 301 489-1 and -17; FCC Part 15B Class B



RECEIVER SENSITIVTY AND TRANSMIT POWER dBm @ 4.7 GHz
Channel Size
TRANSMIT POWER
(dBm)
Modulation Mode 5 MHz  10 MHz 15 MHz 20 MHz 30 MHz 40 MHz 45 MHz
BPSK 0.63 Single -93.5 -92.0 -90.2 -89.0 -87.2 -86.0 -85.5 28.0
QPSK 0.63 Single -90.0 -88.5 -86.7 -85.5 -83.7 -82.5 -82.0 27.0
QPSK 0.87 Dual -86.0 -84.5 -82.7 -81.5 -79.7 -78.5 -77.9 26.0
16QAM 0.63 Single -84.1 -82.6 -80.8 -79.5 -77.8 -76.5 -76.0 25.0
16QAM 0.63 Dual -81.0 -79.5 -77.8 -76.5 -74.8 -73.5 -73.0 25.0
16QAM 0.87 Single -79.4 -77.9 -76.1 -74.8 -73.1 -71.8 -71.3 24.0
16QAM 0.87 Dual -76.3 -74.8 -73.0 -71.8 -70.0 -68.8 -68.3 24.0
64QAM 0.75 Single -76.4 -74.9 -73.1 -71.9 -70.1 -68.9 -68.4 23.0
64QAM 0.75 Dual -73.3 -71.8 -70.0 -68.8 -67.0 -65.8 -65.3 23.0
64QAM 0.92 Single -72.6 -71.1 -69.4 -68.1 -66.3 -65.1 -64.6 23.0
64QAM 0.92 Dual -69.4 -67.9 -66.1 -64.8 -63.1 -61.8 -61.3 23.0
256QAM 0.81 Single -69.4 -67.9 -66.1 -64.8 -63.1 -61.8 -61.3 23.0
256QAM 0.81 Dual -65.8 -64.3 -62.5 -61.3 -59.5 -58.3 -57.8 23.0
THROUGHPUT (Mbps @ 5 km)
Channel Size
Modulation Mode 5 MHz  10 MHz 15 MHz 20 MHz 30 MHz 40 MHz 45 MHz
BPSK 0.63 Single 2.3 4.8 7.2 9.6 14.5 19.8 21.7
QPSK 0.63 Single 4.7 9.6 14.5 19.2 29.1 39.7 43.5
QPSK 0.87 Single 6.5 13.4 20.2 26.8 40.5 55.2 60.5
16QAM 0.63 Single 9.3 19.3 29.0 38.5 58.1 79.4 87.0
16QAM 0.87 Single 12.9 26.8 40.3 53.5 80.9 110.4 121.0
64QAM 0.75 Single 16.6 34.5 51.8 68.8 103.9 141.9 155.5
64QAM 0.92 Single 20.4 42.2 63.4 84.2 127.2 173.7 190.3
256QAM 0.81 Single 24.5 50.0 75.3 99.9 151.0 206.1 225.9
16QAM 0.63 Dual 18.6 38.5 58.0 77.0 116.3 158.7 173.9
16QAM 0.87 Dual 25.9 53.6 80.7 107.1 161.7 220.8 241.9
64QAM 0.75 Dual 33.3 68.9 103.7 137.6 207.9 283.8 311.0
64QAM 0.92 Dual 40.7 84.2 126.9 168.4 254.4 347.4 380.6
256QAM 0.81 Dual 48.4 100.1 150.6 199.9 301.9 412.2 451.7
