ICOM IC-F5013/H - VHF Analog Radio

VHF and UHF Transceivers

25W VHF transceiver
25W UHF transceiver
50W VHF transceiver
45W UHF transceiver

VHF - UHF - Analog Radio - IC-F5013/6013

Simple operation, versatile functions & rugged construction for your day-to-day communication needs

Simple operation for instant communication

The IC-F5013/H series has 8 channels. The P0-P3 programma-ble buttons allows you to customize the radio to suit your needs and convenience.

Most popular signalings built-in

Use the built-in 2-Tone, 5-Tone, MDC 1200, CTCSS and DTCS capabilities as standard to set up your own talk groups and quiet stand-by when others are talking.

Multiple 2-Tone, multiple 5-Tone

Up to ten 2-Tone or eight 5-Tone codes can be decoded on a channel. Features such as stun, kill, revive, answer back, auto TX, scan, audio output are programmable to respond to each tone.

MDC 1200 compatible

The IC-F5013/H series has a built-in MDC 1200 for transmitting a PTT ID and emergency* signal and for receiving radio check, stun and revive. Assimilate the radio easily into existing MDC 1200 systems. (* No ACK transmission)

Enhanced scan features

The priority scan function allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talk back functions allow you to make a quick response while scanning.

Remote channel control with optional ACC cable

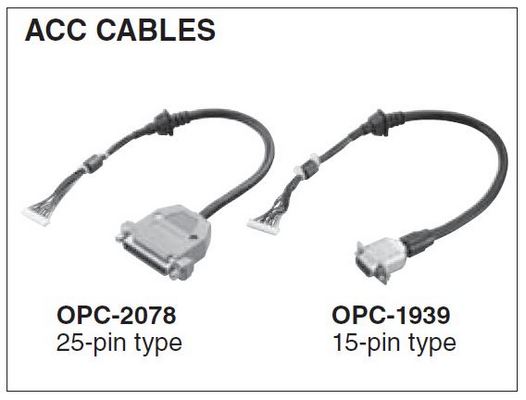

The optional ACC cable allows you to connect with various external de-vices to control audio output, modu-lated signal input, remote channel control, horn honk and many more functions.  OPC-1939 is a D-SUB 15-pin t ype and OPC-2078 is a D-SUB 25-pin type.

Built military rugged

The IC-F5013/H series is tested to MIL-STD 810 F specifi cations. The radio is built to survive harsh environment and keep working.

Other features

  • 4W (typ.) front mounted speaker
  • Wide frequency coverage (136–174, 400–470 and 450–520MHz)
  • Wide/narrow channel spacing (25, 12.5kHz) programmable
  • Microphone hanger action programmable
  • Optional DTMF microphone (HM-152T)

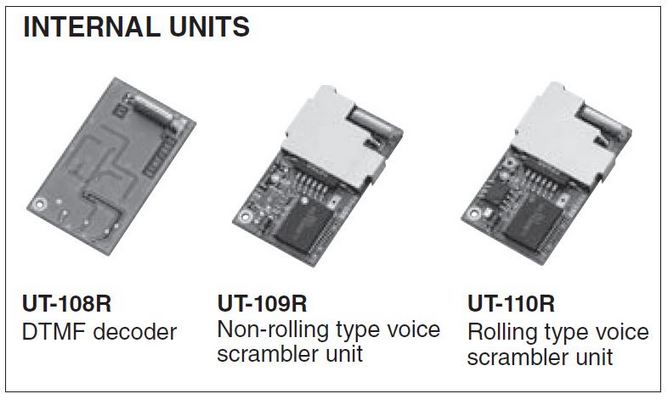

  • Optional voice scrambler unit, UT-109R or UT-110R
  • DTMF autodial and optional DTMF decoder, UT-108R
  • PC programmable
  • Talk around function
  • Power-on password function
  • Nuisance delete function
  • Time-out-timer, lock-out penalty timer


  IC-F5013H, IC-F5013 IC-F6013H, IC-F6013
Frequency coverage 136–174MHz 400–470MHz
Number of channels 8 channels
Type of emission 16K0F3E/11K0F3E
Channel spacing 12.5/25kHz
PLL channel step 2.5/3.125kHz
Power supply requirement 13.6V DC
Current drain (approx.)
Tx 50W/45W
Rx Max. audio

10A (IC-F5013H)

11A (IC-F6013H)
Antenna impedance 50Ω (SO-239)
Operating temperature range –30°C to +60°C ; –22°F to +140°F
Dimensions (W×H×D)
(Projections not included)
150×40×167.5mm; 5.91×1.57×6.59in (IC-F5013H/F6013H)
150×40×117.5mm; 5.91×1.57×4.63in (IC-F5013/F6013)
Weight (approx.) 1.1kg; 2.4lb (IC-F5013H/F6013H)
0.8kg; 1.8lb (IC-F5013/F6013)
Output power (Hi, L2, L1)
(at 13.6V DC)
50W, 25W, 5W (IC-F5013H)
25W, 10W, 2.5W (IC-F5013)
45W, 25W, 4.5W (IC-F6013H)
25W, 10W, 2.5W (IC-F6013)
Max. frequency deviation ± 5.0kHz/±2.5kHz (Wide/Narrow)
Frequency stability ±2.5ppm
Spurious emissions 70dB min. 70dB typ.
FM Hum and noise 46/40dB typ. (Wide/Narrow)
Audio harmonic distortion
(AF 1kHz 40% deviation)
3% typ.
Ext. microphone impedance 600Ω (8-pin modular)
Sensitivity (at 12dB SINAD) 0.25μV typ.
Adjacent channel selectivity 75/65dB typ. (W/N)
Spurious response rejection 70dB min.
Intermodulation rejection 75dB typ.
Hum and noise 45/40dB typ. (W/N)
Audio output power
(at 5% distortion, 4Ω load)
4W typ.
Ext. speaker connector 2-conductor 3.5 (d) mm (1⁄8สบ)/4Ω

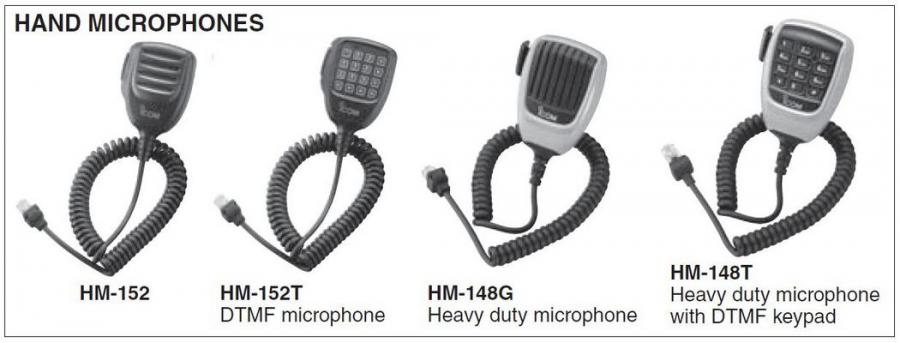

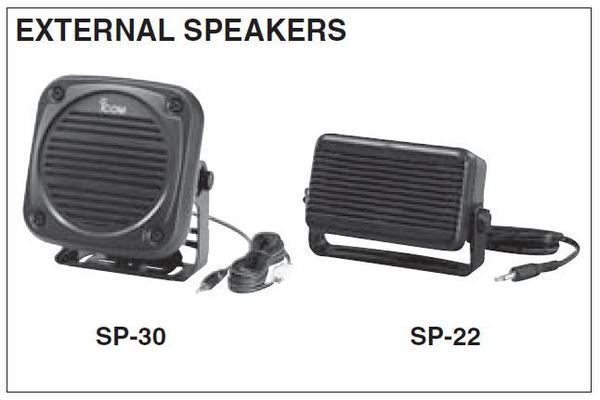

IC-F5013/H - Hand MicrophonesVHF Analog Radio - Desktop MicrophonesVHF - IC-F5013/H - Internal UnitsVHF - UHF - External SpeakersVHF - UHF - ACC Cables
