AT HFB 2-30 Biconical Dipole Antenna



AT HF Biconical Dipole Antenna
Our HF broadband Biconical Dipoles are highly efficient, horizontally polarised antennas that at lower frequencies are suitable for short to medium range communication and at the higher frequencies have the strongest signals at lower angles for long range propagation.
The antenna is centre fed and can be supplied with power ratings ranging from 200 watts, to 10 Kilowatts CW (Continuous). The antennas are almost 100% efficient across the full operating range of frequencies. The antenna is ideal for frequency agile transmissions and is constructed of high grade materials throughout.

Full lightning protection is provided
Specifications
  AT HFB-2-30 AT HFB-3-30

Frequency: 2-30 MHz 3-30 MHz
Gain: 8.5 dBi
VSWR: 2.0-1 most of band, 2.5:1 maximum
Polarisation: Horizontal
Power Rating : 250 watt average (1 kW PEP) 1Kilowatt average (4 kW PEP) and 10 Kilowatt (40 kW PEP) models available
Input Impedance: 50 ohms
Input connection: Dependant on power rating
Mechanical
Mast Height: 20m 15m
Overall length: 101m 72m
Overall Width: 40m 30m
Wind Rating 230 km/hr
All metal materials are of high grade stainless steel or hot-dip galvanised steel.
Ceramic insulators used throughout.

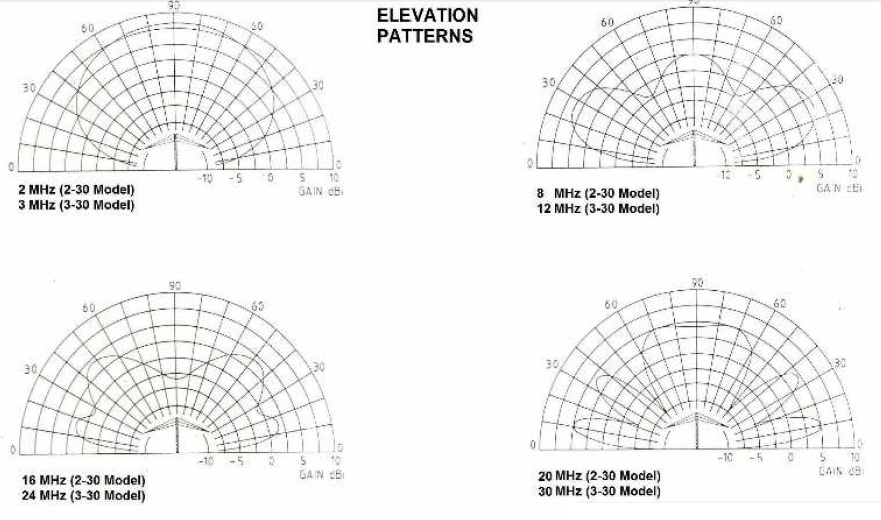

AT HF Biconical Dipole Elevation Pattern

AT HF Biconical Dipole Antenna
