AT VICM 212 - FTI - Field Telephone Interface




 PDF version Download PDF version of text | Printer-friendly versionPrinter-friendly version

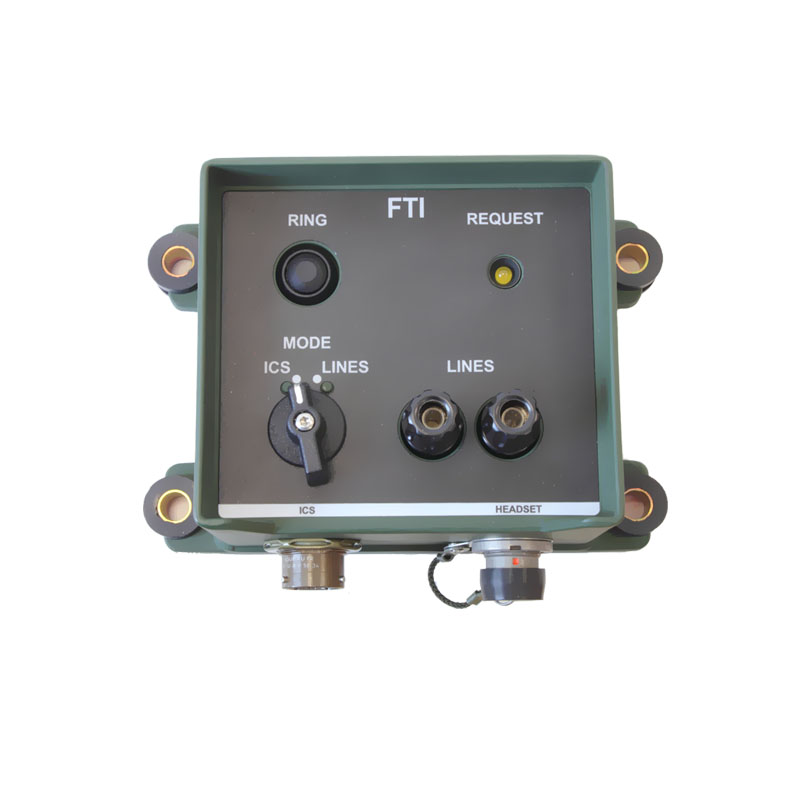

AT VICM 212 - FTI - Field Telephone Interface



FTI is an extension unit of the Software Defined Intercom System VICM 200 COMBAT. It allows to connect a LB/CB Field Telephone using two-wire line.


Field Telephone Interface Military Intercom

  • Connection of 1 headset (ANR)
  • Interface for the Field Telephone
  • Generates ringing signal for LB/CB field phone
  • Generates acoustic and optical signals of field phone ringing
  • Connected to headset port on CCU, BCU or SAI

Connection

 Field Telephone Interface Military Intercom

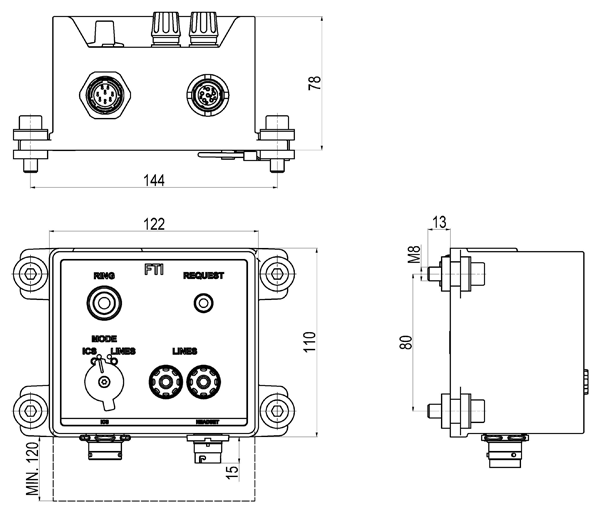

Dimensional drawing

 Field Telephone Interface Military Intercom

Technical parameters

 Field Telephone Interface Military Intercom Systems

Dimensions (W x H x D)
Weight max.
Nominal supply voltage
Operating temperature
Storage temperature
Environment

(164 x 121,5 x 83) mm
1,1 kg
28 V DC
-35°C to +60°C
-40°C to +71°C
MIL-STD-461E, MIL-STD-810F




AT VICM 212 - FTI - Field Telephone Interface - Military Intercom
