TrellisWare TW Shadow 750 Radio



TrellisWare TW Shadow 750

TW SHADOW 750 RADIO

ROBUST PERFORMANCE WITHOUT COMPROMISE
The TW Shadow 750 radio expands TrellisWare’s family of radios with a highly integrated handheld solution to address mission-critical communications challenges, putting resilient and assured communications capabilities directly in the users’ hands for simplified operation. The radio is designed to provide mission-critical voice, data service, and position location information (PLI) across the entire formation.
The multi-waveform TW-750 radio operates the industry-leading TSM Mobile Ad Hoc Networking (MANET) waveform, the modern electronic counter-countermeasure (ECCM) Katana narrowband MANET waveform, and the Narrowband Line-of-Sight (NBLOS) waveform to provide maximum reliability, resiliency, scalability, security, and interoperability. The TW-750 was purposefully designed to deliver next-generation capabilities at a competitive price point without sacrificing performance or customization.

KEY FEATURES
    Built-in speaker & microphone, dual Push-to-Talk (PTT), 32 Talk Groups, Wi-Fi, Bluetooth, and multi-constellation GNSS
    TSM waveform for interoperability with existing TrellisWare radios and partner solutions, including the capability to relay high-assurance traffic from Type-1 radios
    Optional anti-jam Katana waveform for assured communications in the most congested and contested environments
    Narrowband Line-of-Sight (NB LOS) waveform for interoperability with FM/AM radios
    MIL-rugged construction and long battery life
    USB-C fast charging and power delivery capability
    Federal Information Processing Standards (FIPS) 140-3
    Comprehensive suite of accessories to support a variety of CONOPS

Specifications

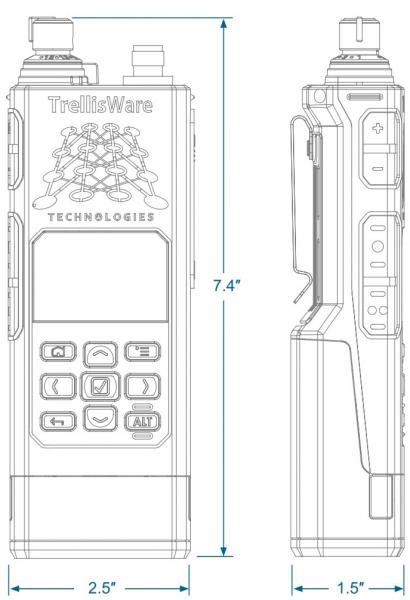

Overall Size 7.4 L x 2.5 W x 1.5 D in (187 x 64 x 39 mm)
Weight Without Battery 0.6 lbs (272 g)
With Battery 1.1 lbs (488 g)
Frequency Range • L-UHF: 225–450 MHz
• U-UHF: 698–970 MHz
• L/S Bands: 1250–2600 MHz
Bandwidth/Channel
Spacing		 Wideband: 1.2, 3.6, 10, 20 MHz
Narrowband: 6.25, 8.33, 12.5, 20, 25, 50 kHz
Transmit Power .001 mW, .01 mW, .1 mW, 10 mW,
100 mW, 250 mW, 500 mW, 1 W, 2 W
Rechargeable Battery 36 Wh USB-C recharge or powerpack mode; desktop and vehicle chargers
Connectors TNC RF, 25-Pin Side Connector
Environmental MIL-STD-810H
Operating Temperature Range -20°C to +55°C (-4°F to +131°F)
Water Resistant IP68
Audio Encoding AMR 5.9, MELPe
Waveforms • TSM
• NBLOS
• Katana (optional)
Wi-Fi Wi-Fi 802.11 ac/a/b/g/n
GNSS GPS, Galileo, GLONASS, BeiDou
Bluetooth Bluetooth 5.2 Core Spec, BLE 4.2, 4.0

Networking Capabilities
Network Coverage • Barrage Relay
• Multi-hop – Up to 8 Hops
• 800 Nodes in a Single RF Channel
• Robust in Harsh RF Environments
• Up to 32 Mbps
Communication
Services		 • Simultaneous Voice, Data, and PLI
• Up to 32 Voice Talk Groups
• Built-in or External GPS
• IP Support – IPv4, IPv6; Unicast, Multicast, Broadcast; TCP, UDP
Security • AES-256 (FIPS 197)
Application Support • Built-in Web Applications
• Over the Air Remote Control
• TW Connect
• ATAK support
• APIs for 3rd Party Integration

Specifications subject to change without notice.

TRELLISWARE WAVEFORMS
TrellisWare's Barrage Relay technology provides proven network scalability and performance without compromising quality of service. The TSM waveform is a highly scalable and robust MANET waveform that supports over 800 nodes with simultaneous voice, data, video, and PLI operating in a single radio frequency channel. The optional Katana waveform combines resilient narrowband fast frequency hopping with tactical MANET, operating in highly contested radio frequency (RF) communication environments.
