TrellisWare TW-850-01 TSM Ghost



Small Form Factor Radio

TrellisWare TW-850-Ghost Military Tactical MANET RadioTW-850-01 TSM Ghost is an affordable, compact, and fully operational radio that provides real-time, continuous Position Location Information (PLI). TSM Ghost is part of TrellisWare’s next generation of products, designed to track personnel and assets, and to provide situational awareness, especially against friendly-fire.

TSM Ghost easily connects to tablets or laptops via a Micro USB, effectively monitors ground operations, and it mounts onto robotic or unmanned systems (UAVs). Each TSM Ghost in the network aggregates all position locations from other radios in the network, and provides GPS location updates every 2-3 seconds. TSM Ghost supports low visibility operations with a built-in battery and concealed buttons for basic operation. It is a small size (3x5” x 2.4” x 0.8”) and weighs only 6.4 oz.

TSM Ghost is powered with TrellisWare’s robust and infrastructure-less TSM™ and operates with any TSM tactical radio. It acts as a relay for voice, data, video, and PLI traffic for all radios on the network, extending the range and reliability of the network.

TW-850-01 TSM Ghost Features

  • Tactical tracking device for real-time continuous PLI
  • Low profile network relay with GPS and RF antenna connectors
  • Integrated battery rechargeable by standard USB charger

TSM Benefits

  • Infrastructure-less MANET
  • High-speed wireless IP networking
  • Self-forming, self-healing
  • Scalable to 200+ nodes
  • Robust in harsh environments
  • Non-routing network

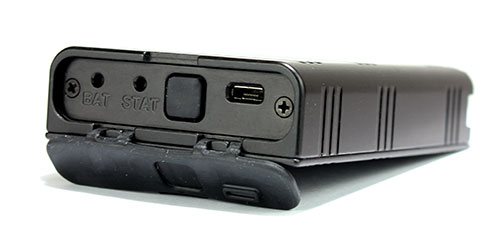

Built-In Power SupplyTrellisWare TW-850 Ghost Battery

With its extremely low Size, Weight, and Power (SWaP), TSM Ghost supports low visibility missions. It includes concealed buttons and a built-in battery for power, and if you need more, operating times can be extended via a standard USB charger

Specifications

Size 3.5" (H) x 2.4" (W) x 0.8" (D)
Weight (R/T only) 6.4 oz
Frequency Range 1775–1815 MHz, 2200-2250 MHz
Occupied Bandwidth 20 MHz, Configurable to 4 MHz
Transmit Power 2 W
Battery Life 9 Hours Tracking with Built-in Battery
Environmental MIL-STD-810G
Water Resistant 2 M Immersion
Operating Temperature -20°C to +55°C
Connectors Micro USB, RF and GPS Antennas
Data Rate 8 Mbps IP Throughput per Channel
Net Entry Time < 1 Second
Waveform TSM
Routing Barrage Relay™ networking
Modulation Constant Envelope

TrellisWare TW-850-Ghost Specification

Common TSM Networking

Network Coverage Mobile Ad-hoc Networking (MANET)
Range – 26 Mile LOS per Network Hop
Multi-hop – Up to 8 Hops
200+ Nodes in a Single RF Channel
Robust in Harsh RF Environments
Communication
Services
Simultaneous Data and PLI
Built-in GPS
IP Support – IPv4, IPv6; Unicast, Multicast, Broadcast; TCP, UDP
Security AES-256
OTAR, OTAZ
Remote Disable
RSA-2048
SHA-256
Application Support Built-in Web Applications
Over the Air Remote Control
APIs for 3rd Party Integration
PLI with CoT, KML, and JSON
Integration with Android™

TrellisWare TW-850-Ghost Apllications

Applications

  • Position location information for tactical tracking and monitoring
  • Affordable device with low size, weight, and power
  • Provides secure wireless datalinks for RECCE operations
  • Increases network range in unmanned systems
  • Operates with other TSM Products
