TrellisWare Flexible-Low Density Parity Check (F-LDPC)

TrellisWare designed the F-LDPC code family to meet the demand for high-performance Forward Error Correction (FEC) solutions across a wide range of commercial and military applications. F-LDPC codes offer capacity-approaching performance for all offered code rates and modulations without sacrificing decoder latency or throughput.

F-LDPC is available as encoder and decoder cores for FPGA and ASIC devices. Standard cores support 8 block sizes, 40 code rates, 4 modulation types and can be instantaneously reconfigured on-the-fly: there is zero latency penalty when transitioning from decoding a 128-bit, rate-1/2, QPSK-modulated data block to a 16,384-bit, rate-32/33, 16QAM-modulated data block.
TrellisWare can also add custom block sizes and code rates before or after delivery via a simple, programmable ROM update.

F-LDPC is deployed in very small aperture terminals (VSAT), free space optics (FSO), holographic storage systems, military waveforms, and TrellisWare’s own tactical mobile ad-hoc networking (MANET) radio products. Some customers choose the F-LDPC for its throughput – Gpbs+ in FPGAs – while others value its low implementation complexity. Others leverage the flexibility of the F-LDPC while designing new waveforms, or for backwards compatibility with legacy links.

TrellisWare F-LDPC Diagram

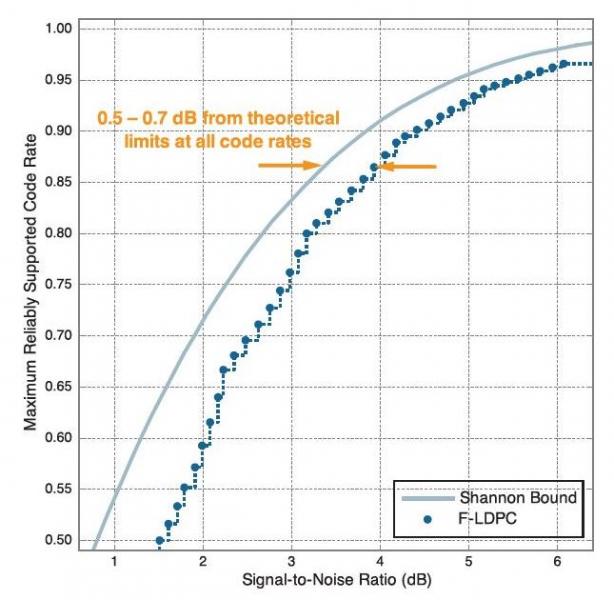

The F-LDPC provides performace within 1 dB of information-theoretic bounds across all code rates and  modulations. This is achieved with a low-complexity, high-throughput decoding architecture.

The flexible, capacity-approaching threshold performance, and excellent floor performance of F-LDPC make it
appealing to customers across diverse markets, with diverse applications:

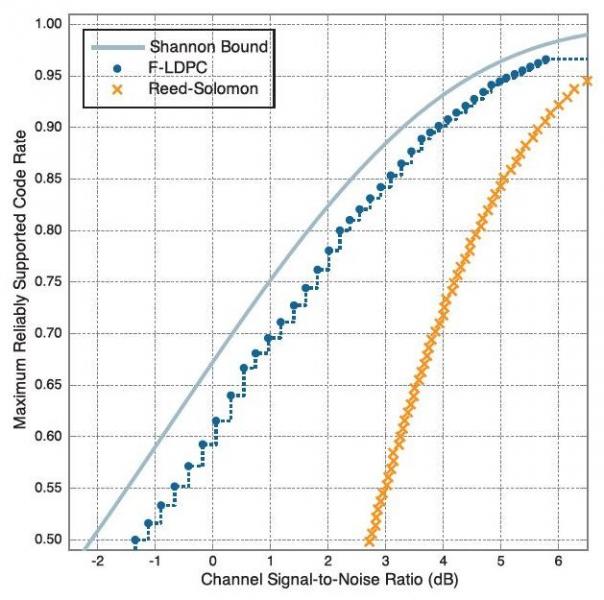

  • Replace Viterbi/Reed Solomon FEC with a modern code without changing other elements of waveform design
  • Apply it to low-cost VSAT and M2M communications links
  • E Band and optical link designers use it to benefit from modern codes at multi-Gbps throughputs
TrellisWare Diagram 2 TrellisWare F LDPC Diagram 3

Features

UNPARALLELED FLEXIBILITY

  • Single encoder/decoder core supports 40 code rates (1/2–32/33) and multiple block sizes. Default block sizes are 128, 256, 512, …, 16384 bits
  • Single encoder/decoder core supports any block size, code rate, and modulation combination
  • Configurable on the fly: Block to block changes with zero latency
  • Custom block sizes and code rates can be added to standard cores

PROVEN PERFORMANCE

  • Capacity approaching performance with low implementation complexity; maximizes Message Completion Rates (MCR)
  • Low error floors
  • High performance for small block sizes

HIGH-THROUGHPUT, LOW-COMPLEXITY

  • Up to 10 Gbps throughput in a single FPGA
  • 100 Gbps+ throughputs achievable in ASICs
  • Complexity lower than competing LDPC and turbo codes
