TW-860 TSM SPIRIT RADIO

TW-860 TSM SPIRIT radio  -    Most cost-effective TSM-enabled radio -    TSM waveform – common to HMS family of radios  -    Designed for body-worn use  -    Support critical spectrum needs for global deployments TRELLISWARE RADIOS KEY FEATURES -    Up to 16 Mbps -    Up to 32 simultaneous talk groups -    UHF, L/S-band in a single radio TSM NETWORK BENEFITS -    Infrastructure-less MANET -    High-speed wireless IP networking  -    Self-forming, self-healing -    Scalable to 800 nodes -    Fast, seamless network join/merge  -    Instant adaptation to network topology changes

LOW-COST WEARABLE RADIO

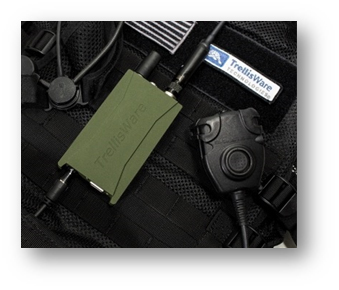

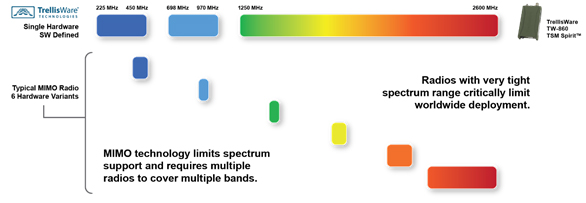

The TSM Spirit radio offers industry leading size, weight, and power (SWaP) among body-worn mesh networking radios, delivering voice, data and real-time positional reporting. The radio is designed to be integrated with wearable power systems and body-worn antennas to further complement its slim, low profile form factor. The TSM Spirit radio provides spectrum support covering 225-450 MHz, 698-970 MHz, and 1250-2600 MHz, all in a single software defined radio (SDR). Interoperable with all TSM enabled radios, the TW-860 TSM Spirit radio supports a true flat network with massive scalability in a single radio frequency (RF) channel, while still delivering rapid position location information (PLI) updates for every radio.
